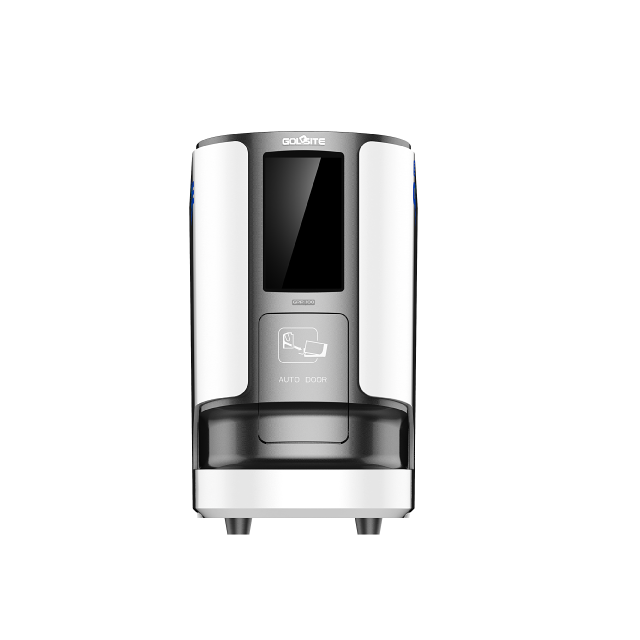

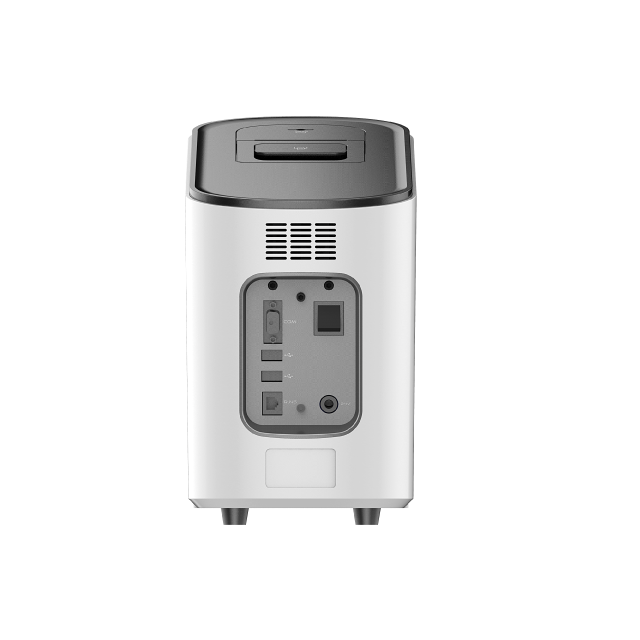

GPP-100

Principle

Nephelometry

Sample type

Whole blood/Plasma/Serum

Sample volume

3μL to 300μL

Test time

3 to 8 minutes

Memory Capacity

100,000 test results

Dimensions

404 mm*161mm* 397mm

Weight

7.1 Kg

HbA1c

2.8% ~ 15.5%

Blood

Diabetes

IgA

0.23   ~ 5.10g/L

Blood/Plasma/Serum

Immune   Disease

IgG

1.8 ~ 26.0 g/L

Blood/Plasma/Serum

IgM

0.18 ~ 4.60 g/L

Plasma/Serum

C3

0.19  ~ 4.70 g/L

Plasma/Serum

C4

0.06  ~ 2.20 g/L

Plasma/Serum

KAP

0.88 ~ 12.20 g/L

Serum

LAM

0.65 ~ 7.10   g/L

ASO

41 ~ 607 IU/mL

Serum

Rheumatoid   Disease

RF

20  ~ 306 IU/mL

Serum

CCP*

15  ~  200 IU/mL

Serum

D-Dimer

0.28 ~ 15.70mg/L

Plasma

Cardiovascular   Disease

UsCRP

0.22  ~ 19.00mg/L

Plasma/Serum

LP(a)

60 ~ 1200   mg/L

Serum

FR-CRP

0.5 ~  380.0 mg/L

Blood/plasma/Serum

Inflammation

CRP

1.6  ~ 152.0 mg/L

Plasma/Serum

SAA

3 ~ 200 mg/L

Blood/plasma/Serum

TRF

0.25 ~ 6.10 g/L

Serum

Urine   IgG

4  ~ 100 mg/L

Urine

Kidney   Disease

Urine   TRF

1 ~  80 mg/L

Urine

A1M

5  ~ 200 mg/L

Urine

mALB

9.5 ~  230.0 mg/L

Urine

CysC

0.4  ~ 7.6 mg/L

Plasma/Serum

BMG

0.4  ~ 13.0 mg/L

Plasma/Serum/Urine

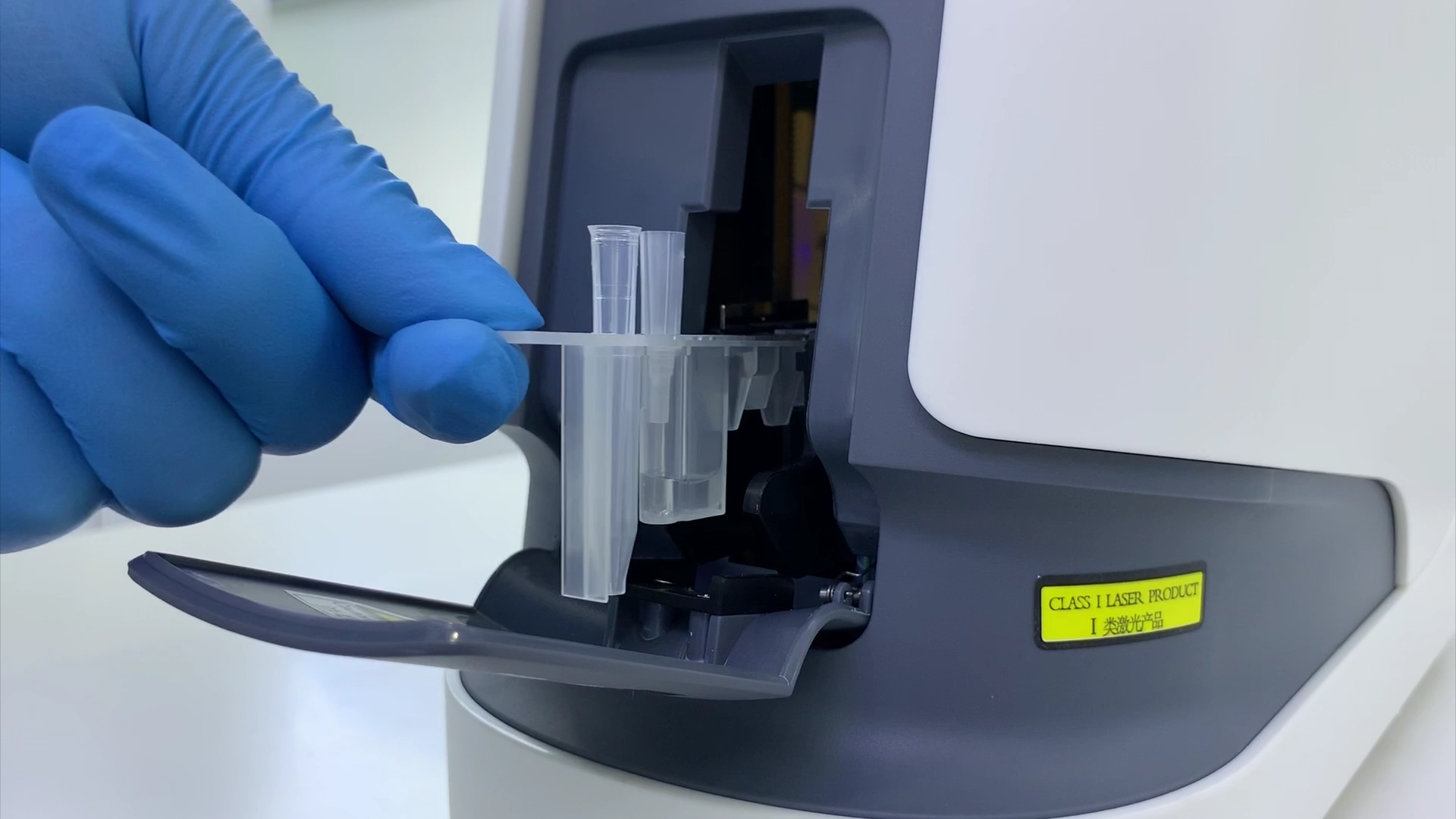

2.Insert the cartridge

Insert the cartridge into the analyzer

3.Print test result

Wait for mins, the result will be displayed

and printed automatically
